Basic example¶

In this tutorial our goals are to learn:

• How to use bartiq to implement a quantum algorithm from a paper
• How to obtain resource estimates for that algorithm
• What the most important concepts used in bartiq are

NOTE:

This tutorial, as well as all the other tutorials, has been written as a jupyter notebook. If you're reading it online, you can either keep reading, or go to docs/tutorials to explore them in a more interactive way!

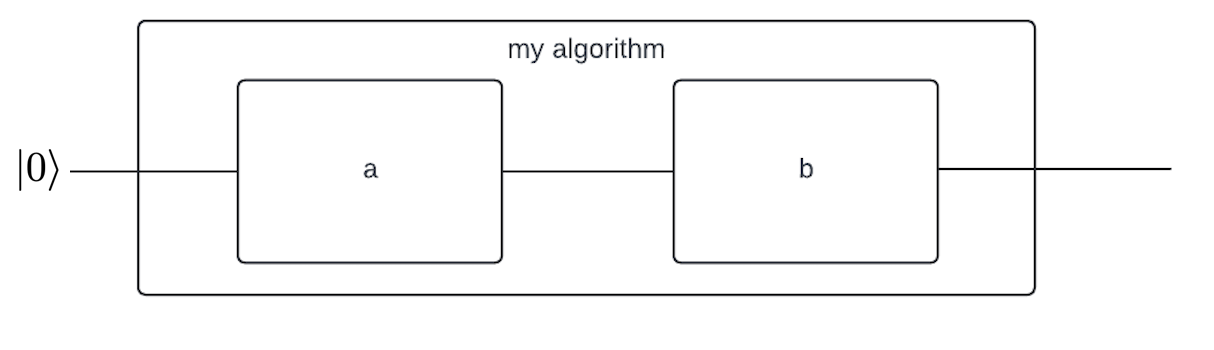

Before we start implementing some real algorithms, let's consider the following simple routine:

In bartiq we call our main object Routine – both the whole algorithm here, as well as each operation will be a Routine. So what do we know about the routines from the picture above?

• Our main routine is called "My algorithm"
• It consists of two subroutines: "a" and "b".
• It takes in a register of size "N".

How do we express this in bartiq? We do that using the QREF format ⧉ – a format for expressing algorithms that we developed with QREs in mind. So let's write our first routine:

In [1]:

my_algorithm = {
    "name": "my_algorithm",
    "type": None,
    "ports": [
        {"name": "in", "direction": "input", "size": "N"},
        {"name": "out", "direction": "output", "size": None},
    ],
}

my_algorithm = { "name": "my_algorithm", "type": None, "ports": [ {"name": "in", "direction": "input", "size": "N"}, {"name": "out", "direction": "output", "size": None}, ], }

What do we have here?

• name: name of the routine
• type: in this case we don't define the type, but in more complex algorithms you might want to add types, such as "basic_gate" or "comparator".
• ports: ports define the interface of the routine. The size of the input port is equal to N and in general, we won't know the size of the output port until we perform the compilation.

What are we missing? Children. Before we add them to the main routine we need to define them.

In [2]:

routine_a = {
    "name": "a",
    "type": None,
    "ports": [
        {"name": "in", "direction": "input", "size": "N_a"},
        {"name": "out", "direction": "output", "size": "N_a"},
    ],
}

routine_a = { "name": "a", "type": None, "ports": [ {"name": "in", "direction": "input", "size": "N_a"}, {"name": "out", "direction": "output", "size": "N_a"}, ], }

In [3]:

routine_b = {
    "name": "b",
    "type": None,
    "ports": [
        {"name": "in", "direction": "input", "size": "N_b"},
        {"name": "out", "direction": "output", "size": "N_b"},
    ],
}

routine_b = { "name": "b", "type": None, "ports": [ {"name": "in", "direction": "input", "size": "N_b"}, {"name": "out", "direction": "output", "size": "N_b"}, ], }

We will need to know how much each subroutine costs if we want to run the resource estimation. In fault-tolerant algorithm the resource that people usually care about is how many T gates do you need to implement an algorithm. Therefore, let's say that a costs 2*N_a T gates and b costs N_b*ceil(log_2(N_b)) T gates. This will require adding two new fields to our dictionary:

In [4]:

routine_a["input_params"] = ["N_a"]
routine_b["input_params"] = ["N_b"]
routine_a["resources"] = [{"name": "T_gates", "type": "additive", "value": "2*N_a"}]
routine_b["resources"] = [{"name": "T_gates", "type": "additive", "value": "N_b*ceil(log_2(N_b))"}]

routine_a["input_params"] = ["N_a"] routine_b["input_params"] = ["N_b"] routine_a["resources"] = [{"name": "T_gates", "type": "additive", "value": "2*N_a"}] routine_b["resources"] = [{"name": "T_gates", "type": "additive", "value": "N_b*ceil(log_2(N_b))"}]

As you can see we added two new fields to our dictionaries:

• input_params: define what variables are used to define resources and register sizes.
• resources: what resources are needed for a particular subroutine. As you can see resources have the following fields:
  • name: name of the resource
  • type: bartiq allows for the following types: additive, multiplicative, qubits and other.
  • value: expression (or numeric value) defining the cost.

Now that routine_a and routine_b are complete, we can add the missing components to my_algorithm:

In [5]:

my_algorithm["children"] = [routine_a, routine_b]
my_algorithm["connections"] = [
    {"source": "in", "target": "a.in"},
    {"source": "a.out", "target": "b.in"},
    {"source": "b.out", "target": "out"},
]
my_algorithm["linked_params"] = [{"source": "N", "targets": ["a.N_a", "b.N_b"]}]

my_algorithm["children"] = [routine_a, routine_b] my_algorithm["connections"] = [ {"source": "in", "target": "a.in"}, {"source": "a.out", "target": "b.in"}, {"source": "b.out", "target": "out"}, ] my_algorithm["linked_params"] = [{"source": "N", "targets": ["a.N_a", "b.N_b"]}]

The new things we have here are:

• connections: how ports are connected. Each connection has source and target.
• children: specifies what subroutines does a particular routine consist of.
• linked_params: tells us how the parameters of the parent are linked to the parameters of children. In this case, it tells us that parameter N from this routine translates to N_a in child a and N_b in child b.

The last step is just a formality to indicate which version of QREF schema we use:

In [6]:

my_algorithm_qref = {'version': 'v1', 'program': my_algorithm}

my_algorithm_qref = {'version': 'v1', 'program': my_algorithm}

Now we can translate our algorithm into a proper bartiq routine and see what's the total cost of my_algorithm.

NOTE:

• You might be wondering, why my_algorithm didn't need input_params? That's because it N does not show up in any expressions – we don't have resources defined here. It does show up in the ports though, so we still need to add it to linked_params.
• Unfortunately at the moment register sizes need to be single variables – fortunately, as we'll see later, there's a way around it using local_variables.

Compilation¶

Below you can find depiction of my_algorithm.

We can create bartiq Routine from QREF definition by simply running:

In [7]:

from bartiq.integrations import qref_to_bartiq
uncompiled_routine = qref_to_bartiq(my_algorithm_qref)

from bartiq.integrations import qref_to_bartiq uncompiled_routine = qref_to_bartiq(my_algorithm_qref)

What does "uncompiled" means here?

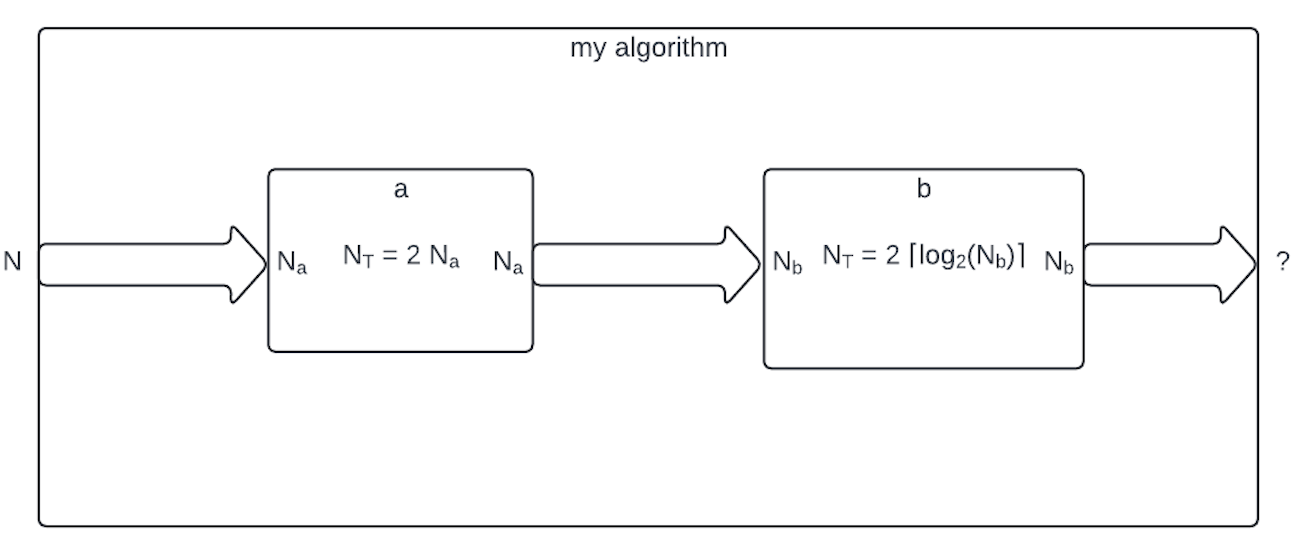

It means that all the costs and register sizes are expressed using local variables (as in the picture above). What does it mean? Look at this:

In [8]:

uncompiled_routine.children["a"].resources

uncompiled_routine.children["a"].resources

Out[8]:

{'T_gates': <Resource name="T_gates" value="2*N_a">}

The cost of "a" is still expressed in terms of its own "local" variable, N_a. Information that we included in linked_params has not yet been propagated into "a".

We also don't know yet what's the size of the output port:

In [9]:

uncompiled_routine.ports["out"]

uncompiled_routine.ports["out"]

Out[9]:

Port(name='out', parent=<Routine name="my_algorithm">, direction='output', size=None, meta={})

Most importantly, we don't know what is the total cost of the algorithm:

In [10]:

uncompiled_routine.resources

uncompiled_routine.resources

Out[10]:

{}

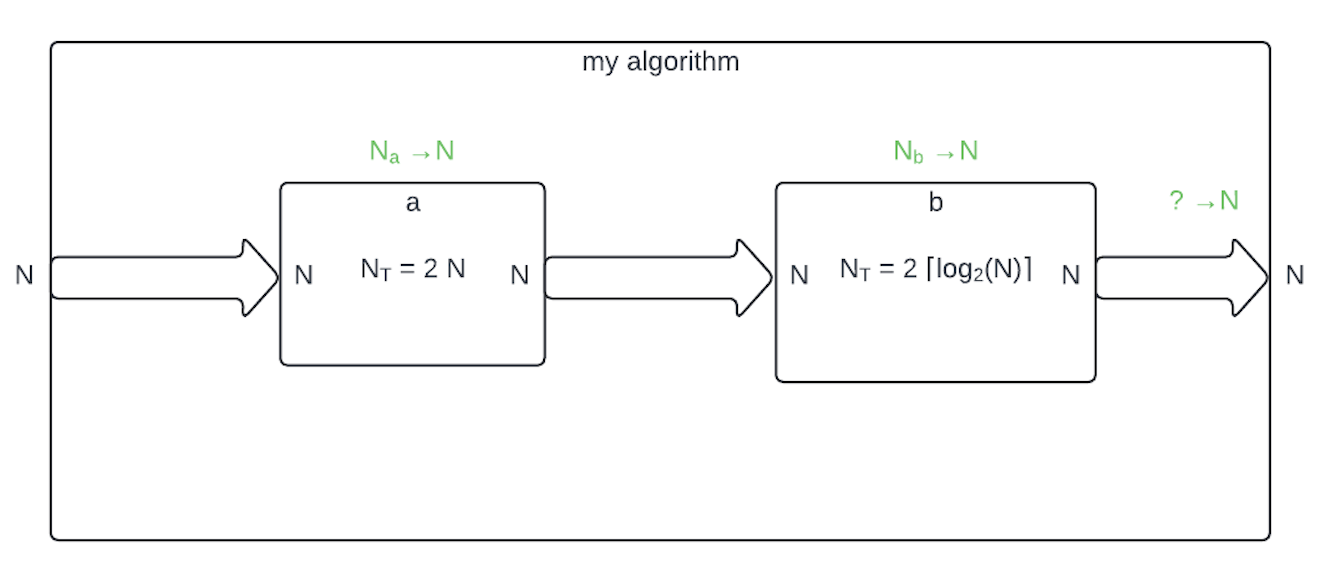

So what we want to do, is to get to the following picture (we highlighted in green what changed from the previous one):

We do this with the following command:

In [11]:

from bartiq import compile_routine
compiled_routine = compile_routine(uncompiled_routine)

from bartiq import compile_routine compiled_routine = compile_routine(uncompiled_routine)

Now if we check the same fields of our compiled_routine object, we'll see that everything is expressed in terms of the

In [12]:

print("T gates for A:", compiled_routine.children["a"].resources["T_gates"].value)
print("Output size:", compiled_routine.ports["out"].size)
print("Total T gates:", compiled_routine.resources["T_gates"].value)

print("T gates for A:", compiled_routine.children["a"].resources["T_gates"].value) print("Output size:", compiled_routine.ports["out"].size) print("Total T gates:", compiled_routine.resources["T_gates"].value)

T gates for A: 2*N
Output size: N
Total T gates: N*ceiling(log2(N)) + 2*N

Evaluation¶

Now it would be good to know what is the cost when we subsitute some numbers. We can do this using evaluate method:

In [13]:

from bartiq import evaluate

for N in range(6, 16, 2):
    assignments = [f"N={N}"]
    evaluated_routine = evaluate(compiled_routine, assignments)
    print(f"N = {N}, total T gates:", evaluated_routine.resources["T_gates"].value)

from bartiq import evaluate for N in range(6, 16, 2): assignments = [f"N={N}"] evaluated_routine = evaluate(compiled_routine, assignments) print(f"N = {N}, total T gates:", evaluated_routine.resources["T_gates"].value)

N = 6, total T gates: 30
N = 8, total T gates: 40
N = 10, total T gates: 60
N = 12, total T gates: 72
N = 14, total T gates: 84

Summary¶

Let's sum up what we covered in this tutorial:

• How to construct a simple algorithm in bartiq
• How to compile an estimate
• How to evaluate an estimate

In the next tutorial we'll cover how to implement a more complex algorithm from a paper.
